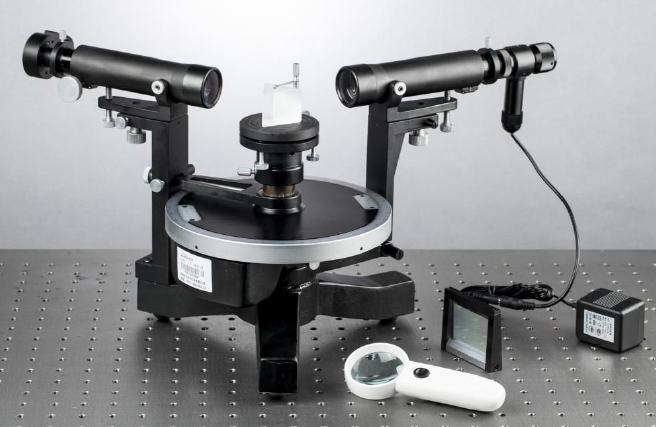

LGS-5 Spectroscope

Introduction

The Spectrometer is spectroscopic angle measurement instrument. It can be used for the angular measurements based on refraction, refraction, diffraction, interference or polarization.

For examples:

1) Measurement of prism angle Based on principle of reflection.

2) Min-deviation measurement of prism based on principle of refractive,

computation of refractive index and dispersion of the material by which the

prism is made.

3) Wave-length measurement and demonstration of the diffraction phenomenon in

interference experiment when in conjunction with the grating.

4) Being used for the experiment of polarization using, zone plate and polarize.

Main configuration and parameters:
Using the principles of reflection, refraction, diffraction and interference, angle measurement is made in various experiments.

Specifications

1) Angle Measurement Accuracy 1’

2) Optical Parameter:

Focal Length 170mm

Effective Aperture Ф33mm

Field of View 3°22’

Focal Length of Telescope’s Eyepiece 24.3mm

3) Max. Length Between Collimator and Telescope 120mm

4) Slit Width 0.02-2mm

5) Diopter Compensation Rang ≥±5diopters

6) Stage:

Diameter Ф70mm

Rotating range 360°

Range of Vertical adjustment 20mm

7) Divided Circle:

Diameter Ф178mm

Circle Graduation 0°-360°

Division 0.5°

-2-

Vernier reading value 1’

8) Dimensions 251(W)×518(D)×250(H)

9) Net Weight 11.8kg

10) Attachments:

(1) Prism angle 60°±5’

Material ZF1(nD=1.6475 nF-nC=0.01912)

(2) Transformer 3V

(3) Optical parallel plate

(4) Magnifier with handle

(5) Planar holographic grating 300/mm

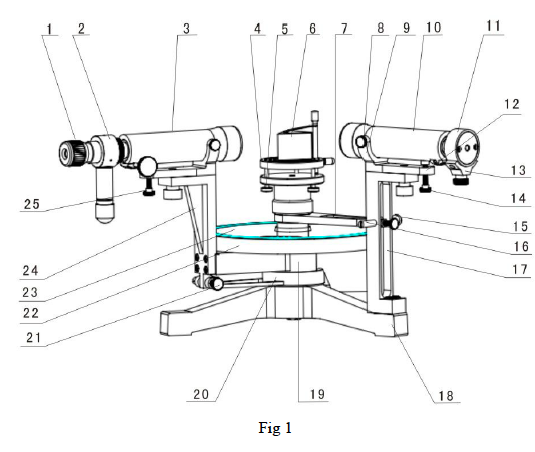

Structure

1.Clamp Screw of Eyepiece 2.Abbe Self-collimating Eyepiece

3.Telescope Unit

4.Stage

5.Level Screws of Stage(3pc)

6.Prism angle 7.Brake Mount(No.2) 8.Level Screw for Collimator

9.U- bracket 10.Collimator Unit 11.Slit Unit

12.Magnetic Pillar 13.Slit Width Adjustment Drum

14.Horizonal Adjustment Screw for Collimator 15.Stop Screw of Vernier

16.Adjustment Knob of Vernier 17.Pillar 18.Chassis

19.Stop Screw of Rotable Base 20.Brake Mount(No.1)

21.Stop Screw of Telescope 22. Divided Circle 23. Vernier Dial

24.arm 25.Vertical Adjusting Screw of Telescopes Shaft
